Intelligent Portable Detector Charging Cabinet

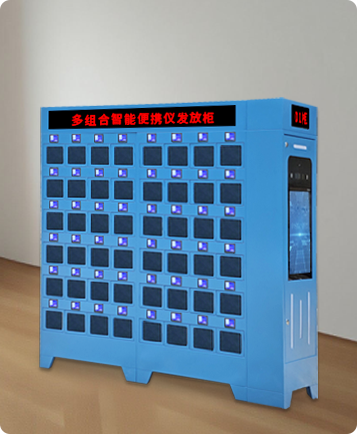

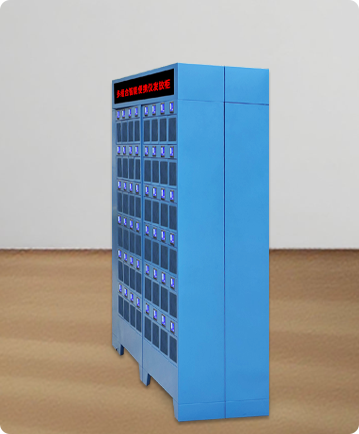

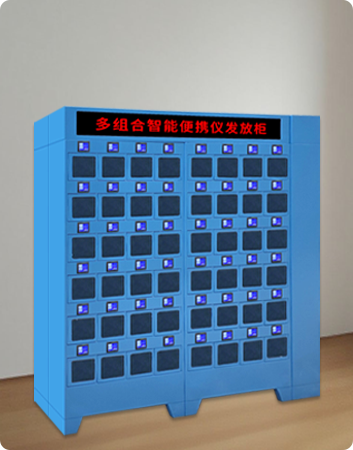

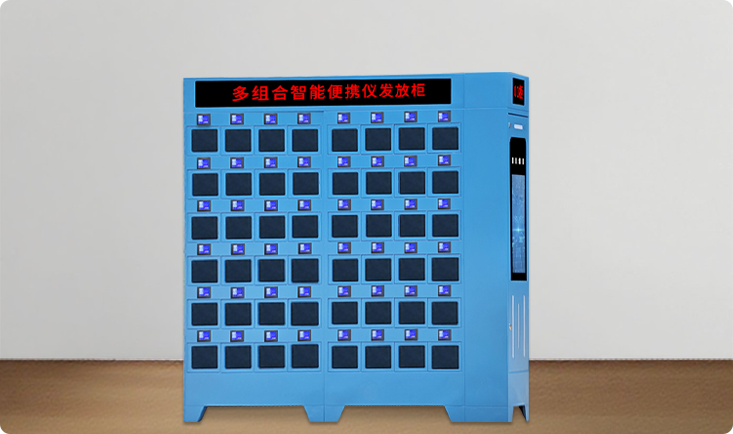

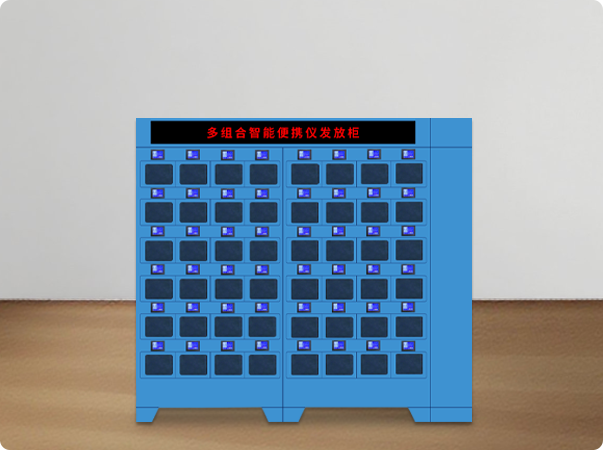

Multi-Combination Intelligent Portable Instrument Dispensing Cabinet
Product Brief

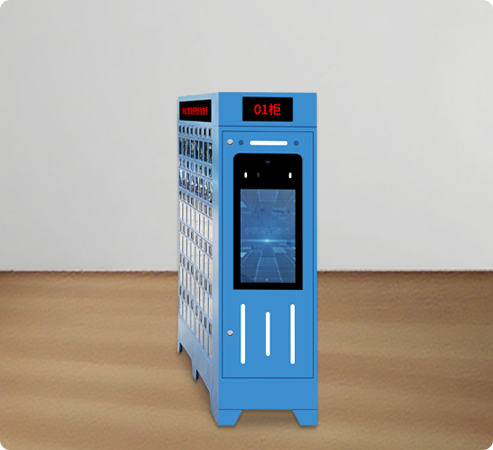

The Multi-Combinations Intelligent Portable Device Charging Cabinet follows the core concept of "customized adaptation & intelligent upgrading". Equipped with a large screen for face + iris multi-modal biometric recognition, it offers high installation flexibility and scenario adaptability with the recognition screen supporting multiangle free layout and adjustable positions per on-site needs. This integrated professional equipment combines multi-type identity verification, centralized charging, safety protection, and intelligent management, enabling unified storage, automatic charging, access logging, and safety alarms for portable terminals. Widely used in coal mining, tunneling, fire protection, and other industries.
Door Quantity:96P
Charging Time: 4-6h
Power: ≤1000W
Key core technologies
Huining Technology has focused on the R&D and manufacturing of industrial intelligent charging cabinets for 18 years, and has always been committed to providing efficient, safe and intelligent management solutions for enterprises in the industrial field.
Relying on continuous technological innovation and profound industry accumulation, Huining Technology has mastered a number of key core technologies for intelligent charging cabinets and built a complete independent intellectual property system. At present, it has obtained 11 national patents and 7 software copyrights, The technological achievements cover core modules such as hardware structure design, intelligent identification and control, charging safety management, big data analysis, and platform integration.
Relying on continuous technological innovation and profound industry accumulation, Huining Technology has mastered a number of key core technologies for intelligent charging cabinets and built a complete independent intellectual property system. At present, it has obtained 11 national patents and 7 software copyrights, The technological achievements cover core modules such as hardware structure design, intelligent identification and control, charging safety management, big data analysis, and platform integration.
Patent Numbers：CN222091134U、CN222107619U、CN221961607U、CN221613345U、CN221281561U、CN219267061U、CN219267009U、CN219228201U、CN219228016U、CN219228015U, etc.
Software Copyrights：Attendance Management System for Mine Lamp Charging Cabinets、Main Control System Management Software for Intelligent Charging Cabinets、Operation Control Software for Intelligent Charging Cabinets、Personnel Information Management System for Biometric Identification Intelligent Mine Lamp Cabinets、Data Statistics Platform for Mine Lamp Charging Cabinets、Alarm Management System for Intelligent Charging Cabinets、Monitoring and Management System for Intelligent Charging Cabinets.
Independent R&D, Original Design
It supports multiple intelligent identification and verification methods, including face recognition, iris recognition, employee ID card verification, and password verification, ensuring safe and traceable usage.
Iris Recognition
Face Recognition
Card Recognition
Remote Control
Intelligent Charging, Energy-Saving Control
It adopts smart charging technology, which automatically identifies the type of portable devices, intelligently adjusts charging parameters, and supports scheduled charging, automatic hibernation, and low-load power consumption optimization to reduce operational energy consumption.
Remote Monitoring, Centralized Management
It enables centralized management functions such as remote start/stop, fault alarm, data viewing, and permission configuration, allowing real-time monitoring of charging status and tool storage conditions.
Multiple Protections for Safety Assurance
It is equipped with sensing systems for overvoltage, short circuit, overtemperature, and smoke, enabling timely early warning and active protection.
Intelligent Management, High Transparency
Intelligent management software: tool management (borrow/return, maintenance, logs) + unique charging device IDs for transparent, traceable use.
Multi-Cabinet Linkage, Centralized Management
Featuring a modular slot design, it supports flexible replacement and expansion of
ports for diverse portable devices-compatible with simultaneous charging of gas detectors, walkie-talkies, temperature measuring ments, etc.
Performance Parameters

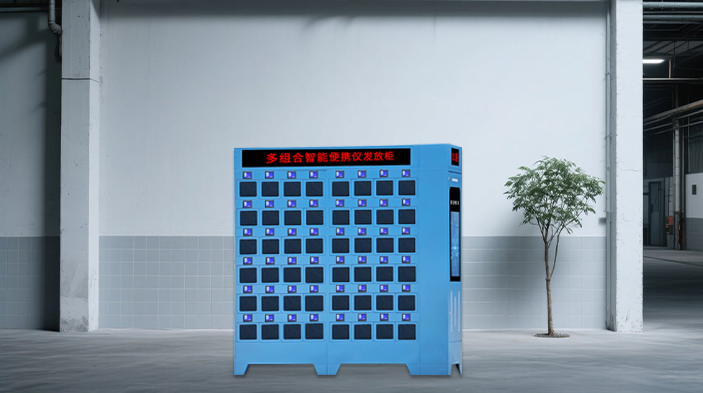

Multi-Combination Portable Instrument Charging Cabinet
Color Screen Portable Device Charging Cabinet
Dual-Color Light Portable Device Charging Cabinet
| Product Name | Multi-Combination Intelligent Portable Instrument Charging Cabinet | Overall Dimensions | 2320×600×2090mm | Charging Protection Response Time | 5ms |
| Equipment Model | HN-BXY-96 | Input Frequency | 50Hz±15% | Total Machine Power | ≤1000W |
| Cabinet Material | Stainless Steel with Surface Powder Coating | Overall Weight | 300-450kg | Insulation Resistance | ≥1MΩ |
| Display Screen | 15.6 Inches | Data Output Method | Wired Ethernet Transmission | Charging Port | AC 220V Charging Port |
| cabinet slot count | 96Positions | Input voltage range | Single-phase AC 220V ±10% | Operating Temperature | -5℃~40℃ |
| Charging Efficiency | ≥85％ | Charging Time | 4-6h | Storage Humidity | ≤95%RH |
| Product Name | Color Screen Intelligent Portable Device Charging Cabinet | Overall Dimensions | 1250×310×1860mm | Charging Protection Response Time | 5ms |
| Equipment Model | HN-BXY-24 | Input Frequency | 50Hz±15% | Total Machine Power | ≤1000W |
| Cabinet Material | Stainless Steel with Surface Powder Coating | Overall Weight | 300-450kg | Insulation Resistance | ≥1MΩ |
| Display Screen | 2.8 Inches/3.5Inches | Data Output Method | Wired Ethernet Transmission | Charging Port | AC 220V Charging Port |
| cabinet slot count | 24Positions | Input voltage range | Single-phase AC 220V ±10% | Operating Temperature | -5℃~40℃ |
| Charging Efficiency | ≥85％ | Charging Times | 4-6h | Storage Humidity | ≤95%RH |
| Product Name | Dual-Color Light Intelligent Portable Device Charging Cabinet | Overall Dimensions | 1250×310×1860mm | Charging Protection Response Time | 5ms |
| Equipment Model | HN-BXY-24 | Input Frequency | 50Hz±15% | Total Machine Power | ≤1000W |
| Cabinet Material | Stainless Steel with Surface Powder Coating | Overall Weight | 300-450kg | Insulation Resistance | ≥1MΩ |
| Status Display Method | Dual-Color Light | Data Output Method | Wired Ethernet Transmission | Charging Port | AC 220V Charging Port |
| cabinet slot count | 24Positions | Input voltage range | Single-phase AC 220V ±10% | Operating Temperature | '-5℃～40℃ |
| Charging Efficiency | ≥85％ | Charging Time | 4-6h | Storage Humidity | ≤95%RH |

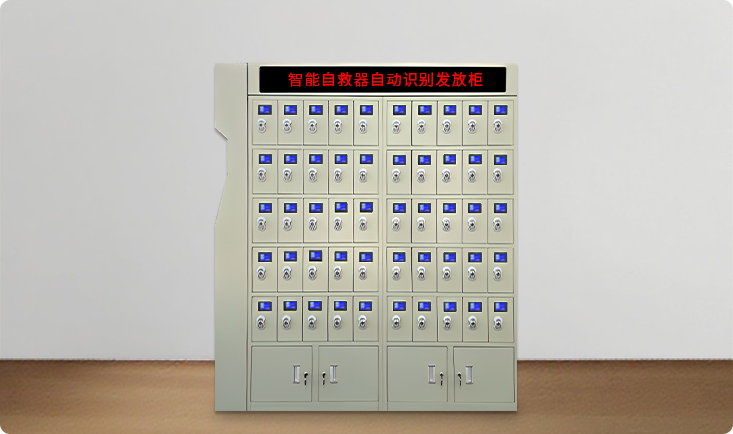

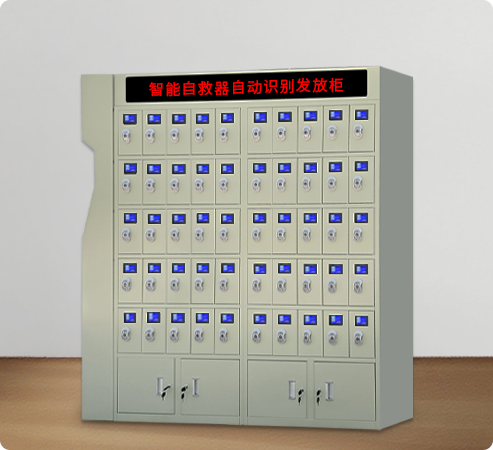

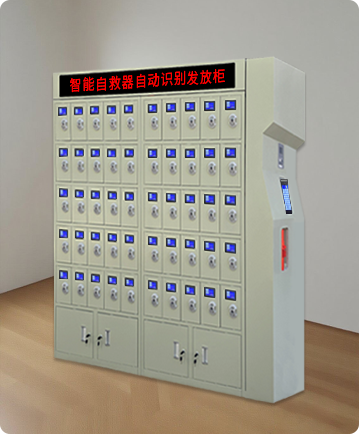

Actual Shot Display
Successful Cases

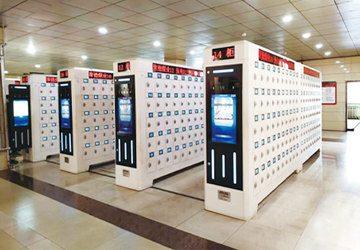

Jude Coal Industry
Product Name：
Multimodal Intelligent Cap Lamp Charging Cabinet
Purchase Quantity：
35 Units
Product Configuration：
Iris Recognition, 100 Cabinet Positions
27-Inch Display Screen, 5.5-Inch Color Screen, LED Scrolling Large Screen, Cold-Rolled Steel (with Surface Powder Coating)...
Customer Reviews：
The product features stable and reliable performance, outstanding quality, simple operation, powerful functions, and excellent value for money!

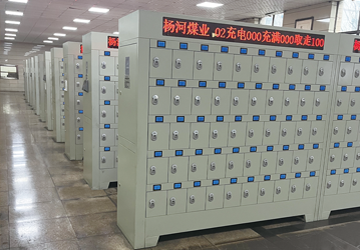

Yanghe Coal Industry
Product Name：
Blue-Screen Intelligent Cap Lamp Charging Cabinet
Purchase Quantity：
22 Units
Product Configuration：
Iris Recognition, 100 Cabinet Positions, 2.2-Inch Blue Screen, LED Scrolling Large Screen, Cold-Rolled Steel (with Surface Powder Coating)...
Customer Reviews：
The product features stable and reliable performance, outstanding quality, simple operation, powerful functions, and excellent value for money!

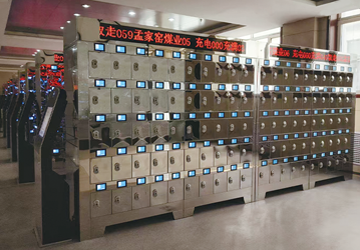

Mengjiayao Coal Industry
Product Name：
Stainless Steel Intelligent
Cap Lamp Charging Cabinet
Purchase Quantity：
14 Units
Product Configuration：
Iris Recognition, 100 Cabinet Positions, 5.5-Inch Color Screen, LED Scrolling Large Screen, 201 Stainless Steel...
Customer Reviews：
The product features stable and reliable performance, outstanding quality, simple operation, powerful functions, and excellent value for money!

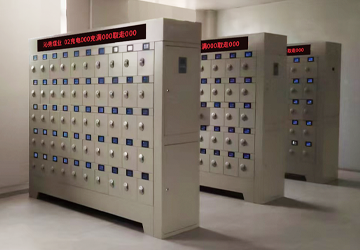

Qinxiu Coal Industry
Product Name：
Color-Screen Intelligent
Cap Lamp Charging Cabine
Purchase Quantity：
10 Units
Product Configuration：
Iris Recognition, 100 Cabinet Positions, 5.5-Inch Color Screen, LED Scrolling Large Screen, Cold-Rolled Steel (with Surface Powder Coating)...
Customer Reviews：
The product features stable and reliable performance, outstanding quality, simple operation, powerful functions, and excellent value for money!
