Product Brief

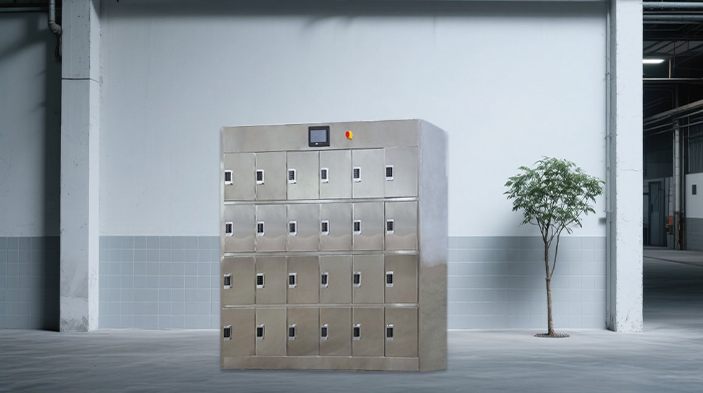

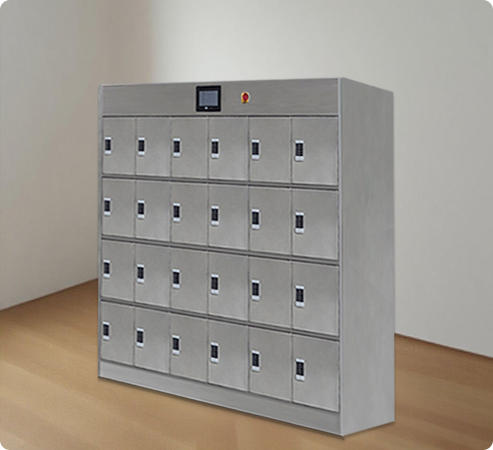

Intelligent Boot Drying Cabinet An intelligent personal protective equipment management device specially developed for underground coal mining environments, it integrates rapid drying, disinfection and sterilization, intelligent identification and remote management. It effectively solves boot dampness and bacterial growth, protects miners' foot health, improves equipment management standards, and suits humid high-risk scenarios like coal mining, tunneling and water conservancy projects.
Door Quantity:24P
Drying Time:1-6h
Power:≤4.2kW
Critical Core Technologies
Huining Technology has focused on the R&D and manufacturing of industrial intelligent charging cabinets for 18 years, and has always been committed to providing efficient, safe and intelligent management solutions for enterprises in the industrial field.
Relying on continuous technological innovation and profound industry accumulation, Huining Technology has mastered a number of key core technologies for intelligent charging cabinets and built a complete independent intellectual property system. At present, it has obtained 11 national patents and 7 software copyrights, The technological achievements cover core modules such as hardware structure design, intelligent identification and control, charging safety management, big data analysis, and platform integration.
Relying on continuous technological innovation and profound industry accumulation, Huining Technology has mastered a number of key core technologies for intelligent charging cabinets and built a complete independent intellectual property system. At present, it has obtained 11 national patents and 7 software copyrights, The technological achievements cover core modules such as hardware structure design, intelligent identification and control, charging safety management, big data analysis, and platform integration.
Patent Numbers：CN222091134U、CN222107619U、CN221961607U、CN221613345U、CN221281561U、CN219267061U、CN219267009U、CN219228201U、CN219228016U、CN219228015U, etc.
Software Copyrights：Attendance Management System for Mine Lamp Charging Cabinets、Main Control System Management Software for Intelligent Charging Cabinets、Operation Control Software for Intelligent Charging Cabinets、Personnel Information Management System for Biometric Identification Intelligent Mine Lamp Cabinets、Data Statistics Platform for Mine Lamp Charging Cabinets、Alarm Management System for Intelligent Charging Cabinets、Monitoring and Management System for Intelligent Charging Cabinets.
Independent R&D ， Original Design
A variety of intelligent identification methods such as face recognition, iris recognition and employee ID card verification are adopted to realize the automatic matching between miners and boot drying cabinets, which improves management efficiency and prevents misclaiming.
Iris Recognition
Face Recognition
Card Recognition
Remote Control
Heating function for rapid drying
A PTC ceramic heating module combined with a hot air circulation system is adopted to quickly remove moisture inside the boots.
Intelligent control and safety protection
The system’s built-in temperature and humidity sensor adjusts the drying environment in real time to prevent overheating or dry heating. Additionally, it allows drying duration temperature setting, automatic multi-mode switching, and features energy efficiency and high effectiveness.

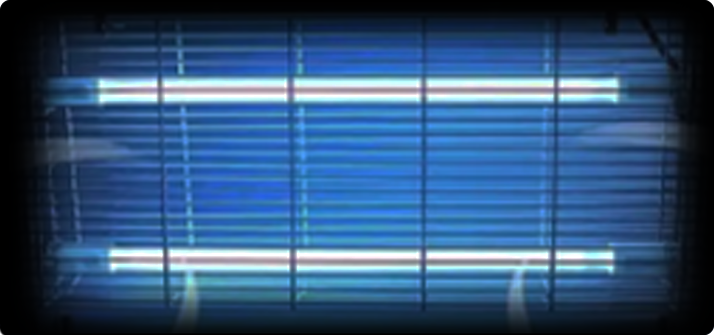

Disinfecting/sterilizing independent cabinets
Independent cabinets are adopted, realizing the standard configuration of "one cabinet per miner". Equipped with an ultraviolet/ozone module, the system kills bacteria and fungi inside the boots, preventing the spread of diseases such as beriberi and tinea pedis.
Performance Parameters
Intelligent Boot Drying Cabinet
| Product Name | Intelligent Boot Drying Cabinet | Overall Dimensions | 2000×750×1850mm | Insulation Resistance | ≥1MΩ |
| Equipment Model | HN-HXG | Input Frequency | 50Hz | Total Machine Power | ≤4.2KW |
| Cabinet Material | Stainless Steel | Overall Weight | 400kg | Drying Time | 1-999min |
| Number of Cabinet Doors | 24 Doors | Drying Temperature Value | 40-80℃ | Dehumidification Time | 1-999min |
| Door Lock | Combination Lock | Humidity Upper Limit Value | 40-90%RH | Sterilization Time | 0-30min |
| Rated Duty System | Long-term Duty System | Humidity Lower Limit Value | 38-85%RH | System Operating Time | 1-999min |

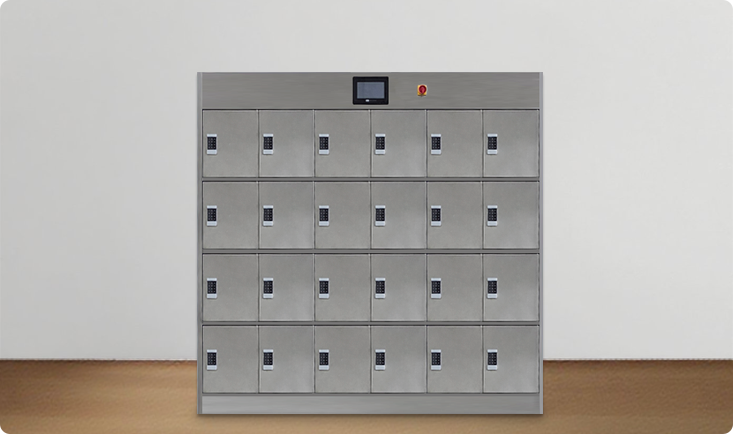

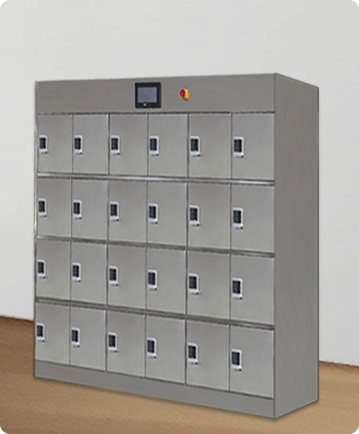

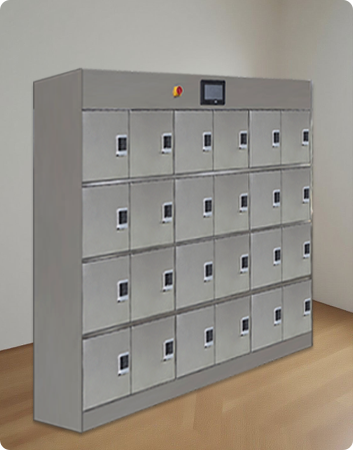

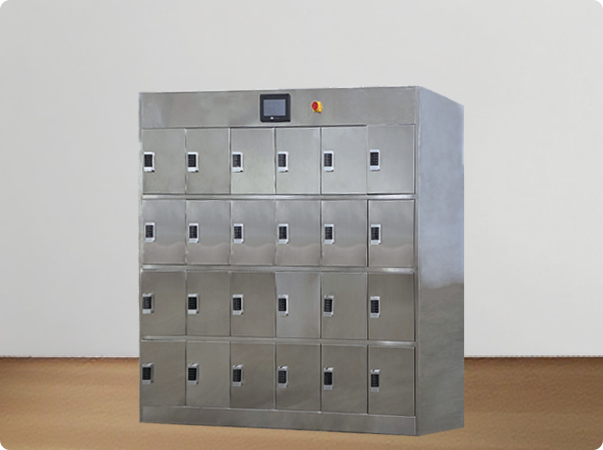

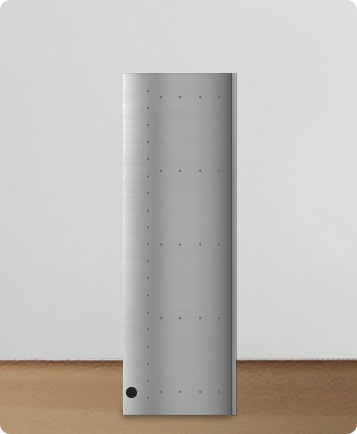

Actual Shot Display
Successful Cases
Jude Coal Industry
Product Name：
Multimodal Intelligent Cap Lamp Charging Cabinet
Purchase Quantity：
35 Units
Product Configuration：
Iris Recognition, 100 Cabinet Positions
27-Inch Display Screen, 5.5-Inch Color Screen, LED Scrolling Large Screen, Cold-Rolled Steel (with Surface Powder Coating)...
Customer Reviews：
The product features stable and reliable performance, outstanding quality, simple operation, powerful functions, and excellent value for money!
Yanghe Coal Industry
Product Name：
Blue-Screen Intelligent Cap Lamp Charging Cabinet
Purchase Quantity：
22 Units
Product Configuration：
Iris Recognition, 100 Cabinet Positions, 2.2-Inch Blue Screen, LED Scrolling Large Screen, Cold-Rolled Steel (with Surface Powder Coating)...
Customer Reviews：
The product features stable and reliable performance, outstanding quality, simple operation, powerful functions, and excellent value for money!
Mengjiayao Coal Industry
Product Name：
Stainless Steel Intelligent
Cap Lamp Charging Cabinet
Purchase Quantity：
14 Units
Product Configuration：
Iris Recognition, 100 Cabinet Positions, 5.5-Inch Color Screen, LED Scrolling Large Screen, 201 Stainless Steel...
Customer Reviews：
The product features stable and reliable performance, outstanding quality, simple operation, powerful functions, and excellent value for money!
Qinxiu Coal Industry
Product Name：
Color-Screen Intelligent
Cap Lamp Charging Cabine
Purchase Quantity：
10 Units
Product Configuration：
Iris Recognition, 100 Cabinet Positions, 5.5-Inch Color Screen, LED Scrolling Large Screen, Cold-Rolled Steel (with Surface Powder Coating)...
Customer Reviews：
The product features stable and reliable performance, outstanding quality, simple operation, powerful functions, and excellent value for money!
