Intelligent Personnel Tag Charging Cabinet
30-Position Magnetic-Attach Intelligent Charging Cabinet for Work Cards
Product Brief
The magnetic smart work card charging cabinet is an intelligent device integrating identity binding, card issuance, attendance checking and charging. It is suitable for parks, factories, construction sites, hospitals, nursing homes, prisons and other places requiring personnel positioning. Through intelligent recognition, precise charging and background data synchronization, it comprehensively improves personnel safety management and achieves the mine management goal of "person with card, full power for instant use, data stored upon card removal".
card slot count:30P
Charging Time: 4-6h
Power: 200W
Critical Core Technologies
Huining Technology has focused on the R&D and manufacturing of industrial intelligent charging cabinets for 18 years, and has always been committed to providing efficient, safe and intelligent management solutions for enterprises in the industrial field.
Relying on continuous technological innovation and profound industry accumulation, Huining Technology has mastered a number of key core technologies for intelligent charging cabinets and built a complete independent intellectual property system. At present, it has obtained 11 national patents and 7 software copyrights, The technological achievements cover core modules such as hardware structure design, intelligent identification and control, charging safety management, big data analysis, and platform integration.
Relying on continuous technological innovation and profound industry accumulation, Huining Technology has mastered a number of key core technologies for intelligent charging cabinets and built a complete independent intellectual property system. At present, it has obtained 11 national patents and 7 software copyrights, The technological achievements cover core modules such as hardware structure design, intelligent identification and control, charging safety management, big data analysis, and platform integration.
Patent Numbers：CN222091134U、CN222107619U、CN221961607U、CN221613345U、CN221281561U、CN219267061U、CN219267009U、CN219228201U、CN219228016U、CN219228015U, etc.
Software Copyrights：Attendance Management System for Mine Lamp Charging Cabinets、Main Control System Management Software for Intelligent Charging Cabinets、Operation Control Software for Intelligent Charging Cabinets、Personnel Information Management System for Biometric Identification Intelligent Mine Lamp Cabinets、Data Statistics Platform for Mine Lamp Charging Cabinets、Alarm Management System for Intelligent Charging Cabinets、Monitoring and Management System for Intelligent Charging Cabinets.
Independent R&D, Original Design
It supports intelligent identification (face recognition, ID card, IC card, employee ID number) for charging permission management, ensuring only authorized personnel access via matching verification. This enables "one card per person" real-name issuance and eliminates unauthorized/miscollection.
Face Recognition
ID Card Recognition
IC Card Recognition
Remote Control
Charging Management, Full-Process Intelligen
It features a built-in intelligent charging module and
temperature-humidity sensor, supporting simultaneous safe multi-card charging. It shows real-time per-slot data (charging status, power, voltage, time) and incudes overvoltage, overcurrent, overtemperature, short-circuit
protection to ensure stable long-term location card use.
Automatic Attendance, Seamless Check-In
Each miner is allocated one cabinet, preventing misclaiming, mistaken taking, and loss. The cabinet enables one-stop centralized charging, issuance, and retrieval management for three types of equipment: miner's lamps, portable devices, and self-rescuers.
Card Status, Automatic Recognition
The system automatically identifies whether a card is abnormal, expired, or out of power, ensuring that the issued cards are always usable.
Multi-Cabinet Linkage, Centralized Management
It supports networked linkage of multiple devices, unified backend operation via one platform, and 4G/Ethernet linkage to the backend system for remote control and simplified management processes.
Multi-Cabinet Linkage, Centralized Management
With modular hardware design supporting hot swapping/quick replacement (reducing O&M complexity), it enables card slot expansion on demand and adapts interfaces、protocols for location cards of various brands、models.
Performance Parameters
| Product Name | Magnetic-Attach Smart Charging Cabinet for Work Cards | Overall Dimensions | 340×162×368mm | Charging Protection Response Time | 5ms |
| Equipment Model | GZKG-L-30 | Input Frequency | 50Hz±15% | Total Machine Power | 200W (5V40A) |
| Cabinet Material | Carbon Steel 、Acrylic Panel | Overall Weight | 3kg | Charging Protection Current | 1.5A |
| Card Slot Quantity | 30 Positions | Output Charging Voltage | DC 5V | Charging Indicator Switch Current | ≥50mA |
| Input Current | AC<4.0A | Input Voltage Range | Single-Phase AC 220V ±10% | Full-Charge Indicator Switching Currentt | <40mA |
| Output Current | 1A (Customizable) | Charging Time | 4~6h | Efficiency | ≥98% |

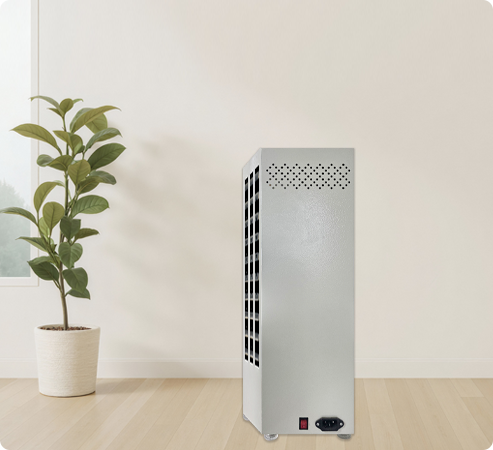

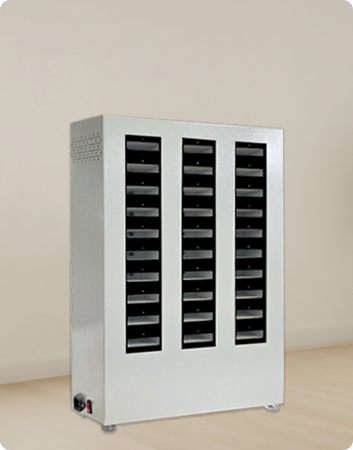

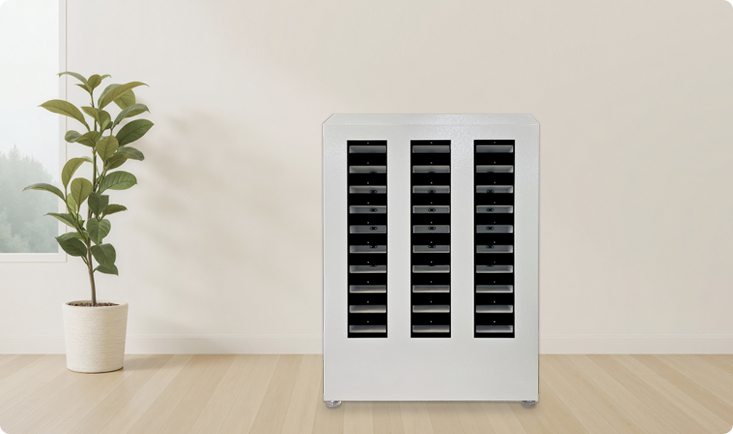

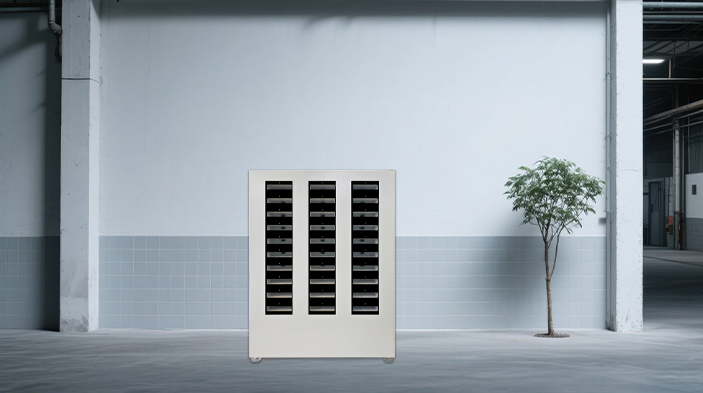

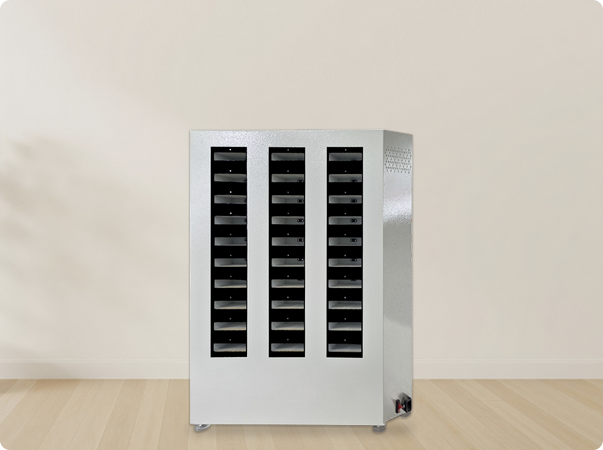

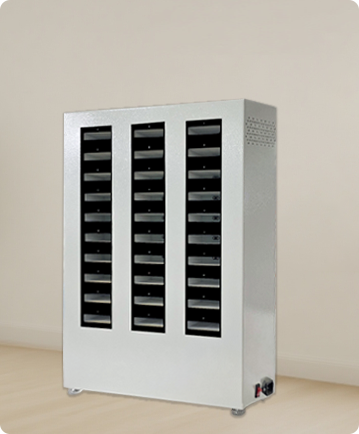

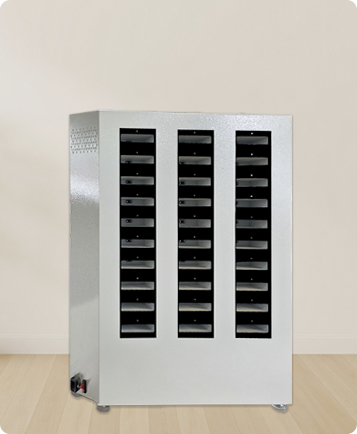

Actual Shot Display
Successful Cases
Jude Coal Industry
Product Name：
Multimodal Intelligent Cap Lamp Charging Cabinet
Purchase Quantity：
35 Units
Product Configuration：
Iris Recognition, 100 Cabinet Positions
27-Inch Display Screen, 5.5-Inch Color Screen, LED Scrolling Large Screen, Cold-Rolled Steel (with Surface Powder Coating)...
Customer Reviews：
The product features stable and reliable performance, outstanding quality, simple operation, powerful functions, and excellent value for money!
Yanghe Coal Industry
Product Name：
Blue-Screen Intelligent Cap Lamp Charging Cabinet
Purchase Quantity：
22 Units
Product Configuration：
Iris Recognition, 100 Cabinet Positions, 2.2-Inch Blue Screen, LED Scrolling Large Screen, Cold-Rolled Steel (with Surface Powder Coating)...
Customer Reviews：
The product features stable and reliable performance, outstanding quality, simple operation, powerful functions, and excellent value for money!
Mengjiayao Coal Industry
Product Name：
Stainless Steel Intelligent
Cap Lamp Charging Cabinet
Purchase Quantity：
14 Units
Product Configuration：
Iris Recognition, 100 Cabinet Positions, 5.5-Inch Color Screen, LED Scrolling Large Screen, 201 Stainless Steel...
Customer Reviews：
The product features stable and reliable performance, outstanding quality, simple operation, powerful functions, and excellent value for money!
Qinxiu Coal Industry
Product Name：
Color-Screen Intelligent
Cap Lamp Charging Cabine
Purchase Quantity：
10 Units
Product Configuration：
Iris Recognition, 100 Cabinet Positions, 5.5-Inch Color Screen, LED Scrolling Large Screen, Cold-Rolled Steel (with Surface Powder Coating)...
Customer Reviews：
The product features stable and reliable performance, outstanding quality, simple operation, powerful functions, and excellent value for money!
